Art. 36931
Art. 5980
25
GENERAL CATALOGUE
Art.
VIDEOPHONES FOR VX2200 DIGITAL SYSTEMS (“6 WIRE VIDEO BUS”)
3676
Videophone using 3.5” full colour active matrix LCD monitor for VX2200 digital video door entry sys-
tems using composite (coax cable) or balanced (twisted pair) video signal. Including 3 buttons “camera
recall”, “door-open/concierge-call”, “privacy/service” plus 3 LED’s* for visual indication of all functions.
Adjustments & programmable options: call tone volume on 3 levels (low, medium, high), picture
brightness and hue, call tone melody, number of rings, video mode, privacy duration and address.
Also includes a local bell function and extension sounder output.
The Art. 3676 is surface mount and requires the Art. 5980 connection board and wall mounting plate.
Except for the service button, all other connections are the same as the Art. 5478 or SL5478N 5000 Se-
ries videophones but doesn’t require a permanent 12V.
3678
“High End”Videophone (with hands free facility) using 3.5” full colour active matrix LCD OSD monitor
for VX2200 digital video door entry systems using composite (coax cable) or balanced (twisted pair) vi-
deo signal. Including 3 buttons “door-open/concierge-call”, “answer/camera recall/’push to talk”, “priva-
cy/call reject/service” plus 3 LED’s* for visual indication of all functions. Adjustments & programmable
options (through OSD menu): loudspeaker volume, call tone volume, picture contrast, brightness and
hue, privacy duration, call tone melody, number of rings. Address and video mode are programmable
through 2 dip-switch banks. Also includes a local bell function.
The Art. 3678 is surface mount and requires the Art. 5980 connection board and wall mounting plate.
Except for the service button, all other connections are the same as the Art. 5478 or SL5478N 5000 Series
videophones.
Art.
VIDEOPHONES FOR VIDEX “6 WIRE” VIDEOKITS (CVK4K, CVR4KV AND CVK8K RANGE)
3656
Videophone using 3.5”full colour active matrix LCD monitor for videokits mentioned above.
Including 3 buttons“door-open/intercommunication”,“camera-recall”and“privacy/service”plus 3 LED’s*
for visual indication of all functions.
Controls for call tone volume with 3 position slide switch (low, medium and high), picture brightness and
hue. Programmable options: privacy duration and number of rings. Also includes a local bell function. The
Art. 3656 is surface mount and requires the Art. 5980 connection board and wall mounting plate.
3600 Series
Videophones
Art.
VIDEOPHONES FOR VX2300 DIGITAL SYSTEMS (“2 WIRE VIDEO”) AND “2 WIRE” VIDEOKITS
3686
Videophone using 3.5” full colour active matrix LCD monitor for VX2300.
Including 3 buttons“camera recall”,“door-open/intercommunicating call”,“privacy/service”plus 3 LED’s* for
visual indication of all functions. Adjustments & programmable options: call tone volume on 3 levels (low,
medium, high), picture brightness and hue, call tone melody, number of rings, privacy duration and address.
Also includes a local bell function.
The Art. 3686 is surface mount and requires the Art. 5980 connection board and wall mounting plate.
* The operation of some LED’s and the functions described may require additional cabling
Art.

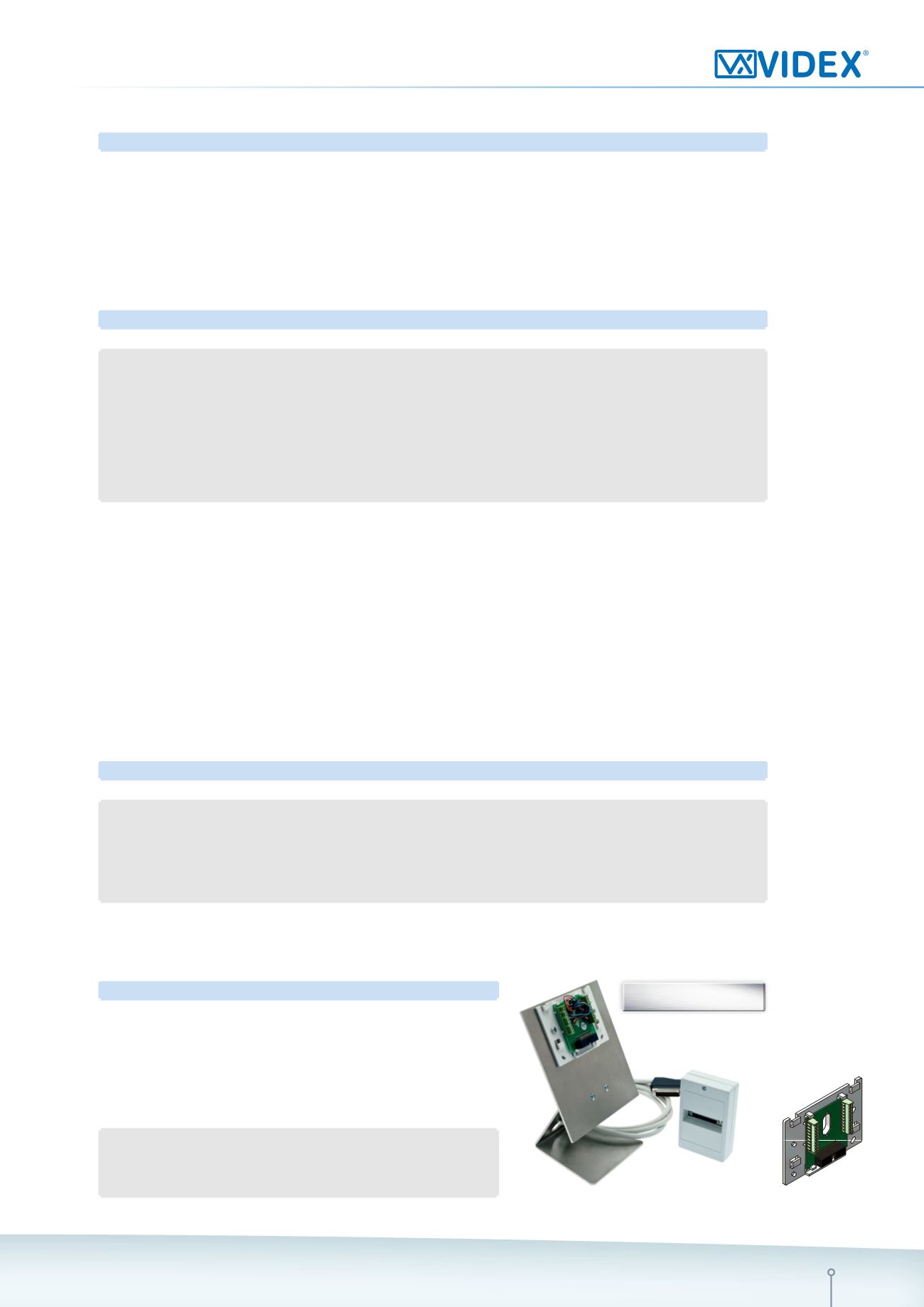

ACCESSORY 3600 SERIES VIDEOPHONE
36931
Table desktop kit for 3600 Series videophones complete
with mounting plate and pcb connection board, cable
and wall socket.
It’s made in 3 mm brushed stainless steel.
Dimensions: 116 X 215 X 149 mm.
5980
Mounting plate and pcb connection board for surface 5000
Series Eclipse videomonitors (standard range) and 3600 Series.
One required to fix a surface eclipse to the wall andmake
connections.
STAINLESS STEEL
