Video monitors from the 5000 Series Eclipse range can be identified by the new compact
design, high quality 3.5”TFT LCD colour display and“hands free”speech (Half duplex or sim-
plex depending on the model). All video monitors (with the exception of the Art.SL5488N)
will operate using coax or balanced (twisted pair) video signals.
All models in the 5000 Series Eclipse range have 6 function buttons and 8 control buttons;
“door open”, “answer/recall”and“privacy”buttons are common in all models, the remaining
buttons will vary depending on the model. Among the 8 control buttons 4 are reserved to
adjust picture “brightness” and “hue” , the other 4 are used to adjust “loudspeaker volume”
“call tone volume” and to select the melody and adjust the melody volume depending on
the model.
All Eclipse models are supplied as surface mounting only, but flush mounting kits are available.
In order to install these units it is necessary to first fix the base of the video monitor containing
the connection PCB on the wall, make all necessary connections then connect the flat ca-
ble which connects the video monitor to the connection PCB, replace the cover hooking it
onto the upper part and fix in place using the supplied screw.
The Eclipse range also includes a VANDAL RESISTANT LINE.
The vandal resistant Eclipse is available for the VX2200 digital system only (Art.VR5478).
The design differs in appearance to that of the standard Eclipse having a 2.5mm thick stain-
less steel fascia and is flush mount only.
With the exception of the SL5488N and VR5478, all other models from the 5000 Series can
be ordered with memory board facility to allow the storing and playing back of still images
captured with a time and date stamp of the call.

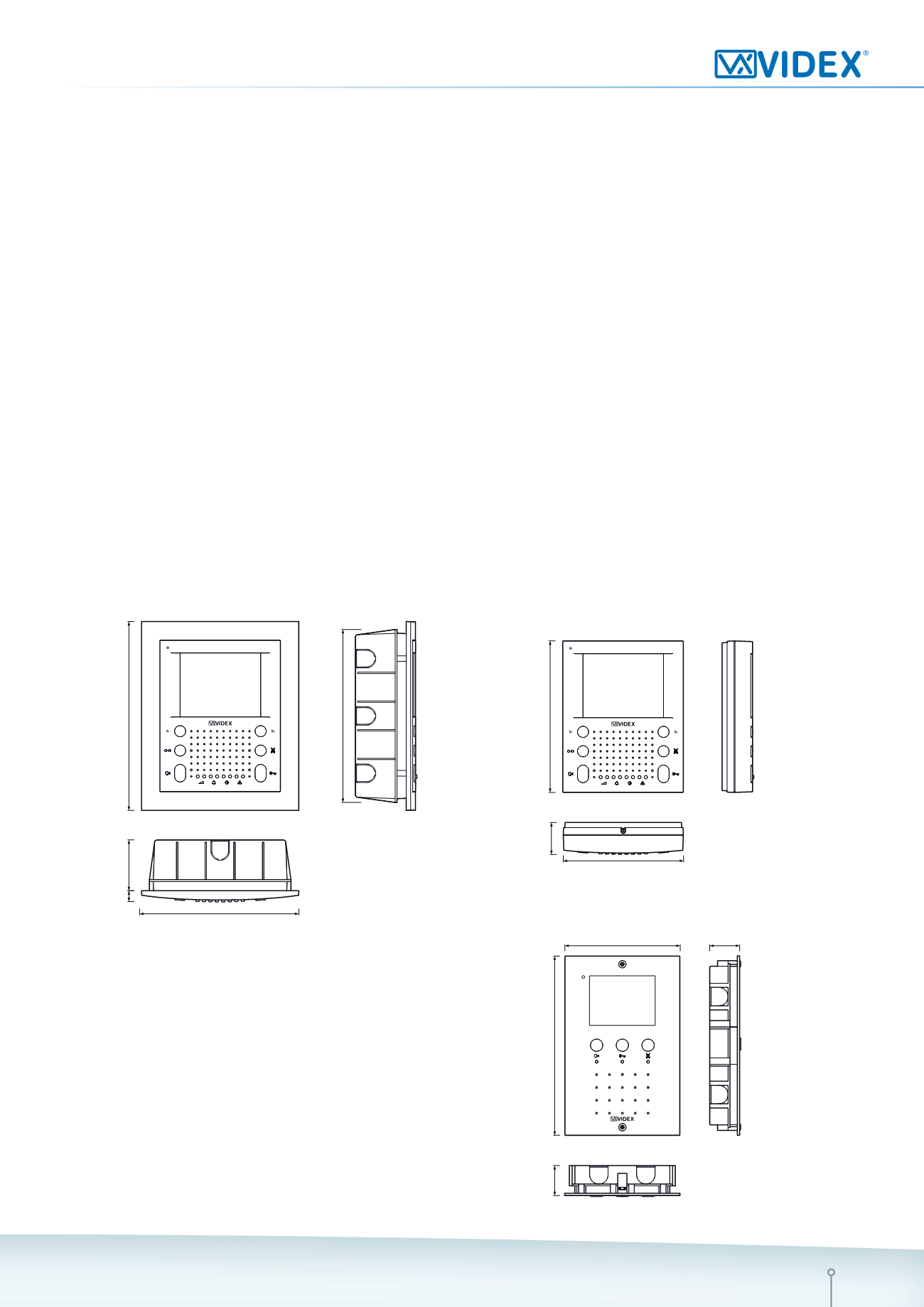

5000 Series Eclipse range
Hands Free Video Monitors
Hands free video monitor
Surface mount
Vandal resistant line
hands free video monitor
Flush mount only
Hands free video monitor
Flush mount
