Art.

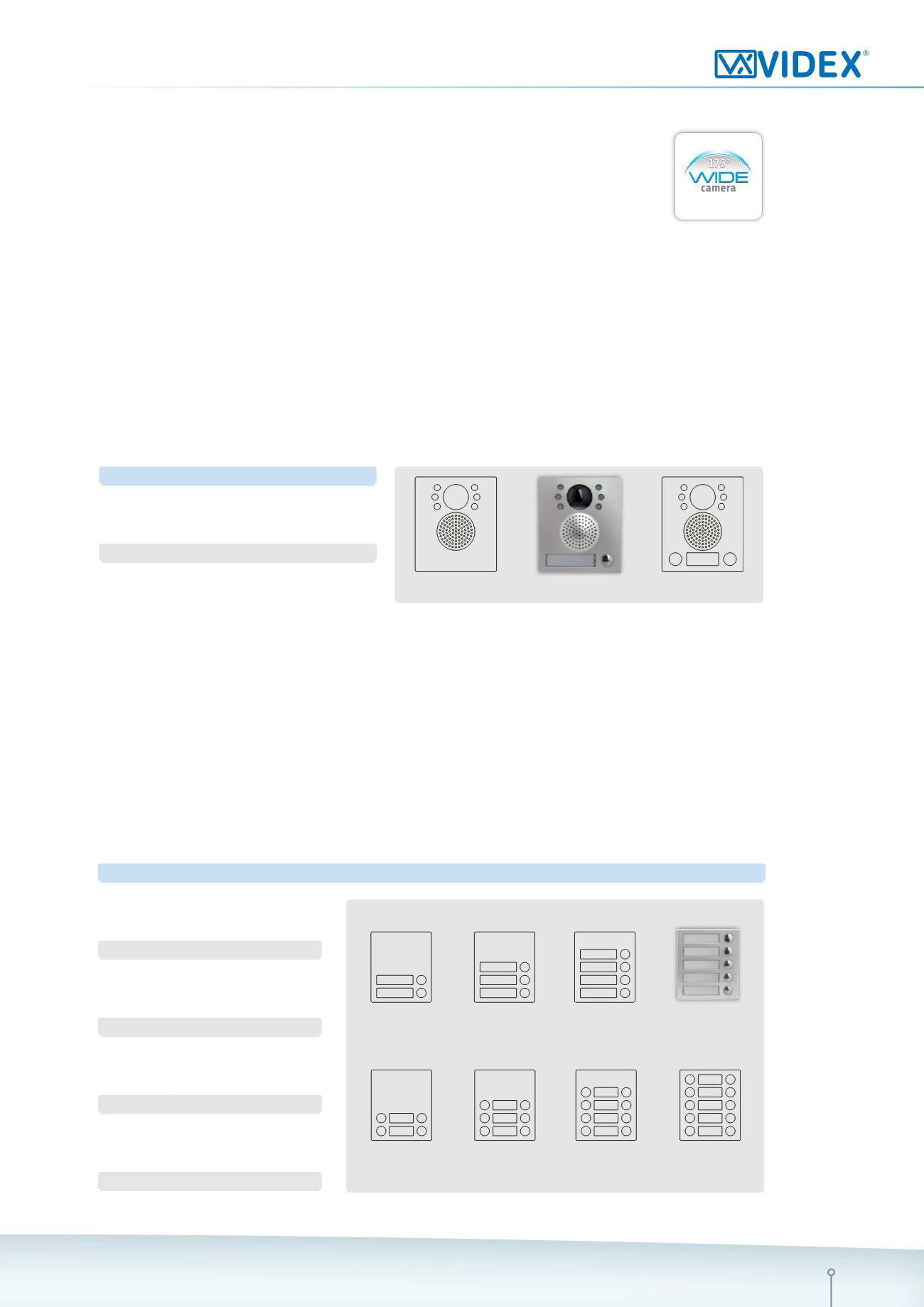

IP DOOR PANEL MODULES
4503-0
0 button.
4503-1
1 button.
4503-1D
2 buttons.
To order the Wide Angle camera add “/wide” to the code.
BUTTON EXPANSION INTERFACE MODULE
Art. 4513 is similar to a traditional expansion module push-button, but it incorporates an interface that allows to
connect the Art. 4503 and expand to 64 buttons (Art. 4842 .. 4845D) including those of the module. There are 8
available versions according to the number of buttons: Art. 4513-2, -3, -4, -5,-2D,-3D, 4D-and-5D.
The in-built buttons are numbered from 1 to 10, while as for the buttons connected externally the number de-
pends on the connection to the matrix (Ex. 1A = 1, 1B = 2 ... 1H = 8).
Art. 4503 makes the configuration of the IP address/addresses which can be assigned to each button.
Power supply: 12Vdc @ 550mA
Working temperature: -10 +50° C
Art.
BUTTON EXPANSION INTERFACE MODULES
4513-2
2 call buttons.
4513-3
3 call buttons.
4513-4
4 call buttons.
4513-5
5 call buttons.
4513-2D
4 call buttons.
4513-3D
6 call buttons.
4513-4D
8 call buttons.
4513-5D
10 call buttons.
IP DOOR PANEL MODULES WITH IN BUILT CAMERA
Art. 4503 is available in 3 versions according to the number of call buttons: Art. 4503-0 (0 button),
Art. 4503-1 (1 button) and Art. 4503-1D (2 buttons). In order to achieve systems with up to 64
call buttons these modules can be combined with an expansion button module Art. 4513 and
standard expansion pushbutton modules Art. 4842 to 4845D. It is possible to set one or more IP
addresses to each call button to identify the destination of the call.
Audio and video communication via SIP is possible using the supplied software clients for Microsoft Windows,
Linux, Android and soon for IOS. (If used with switchboards or “VOIP” server, communication the system must be
compatible with the MPEG-4 Codec in order to have video).
An inbuilt web server is available for the configuration and programming using a web browser.
The camera is a “Day/Night” colour CCD with autofocus, it includes infra red LED’s and it can be adjusted both verti-
cally and horizontally up to 10°.
Two dry contacts relays are included which can be activated separately.
Power supply: 12Vdc @ 550mA
Contact relay: Max 24Vac/dc @3A
Working temperature: -10 +50° C
