GENERAL CATALOGUE
FRONT SUPPORT AND SURFACE MOUNTING UNIT AVAILABLE MATERIALS AND FINISHES
Front support and surface mounting units are available with the support frame in 3 different finishes:
-- embossed metallized gun-metal grey (standard finish);
-- sky chrome PVD** (chromium effect);
-- high brass PVD** (gold chromium effect).
When ordering other than standard finish, add to the product code “/C” to
order the sky chrome finish or “/G” to order high brass finish.
* The product code is relevant to the module shown in the photo.
** The PVD technology employed in coating the support frames has no environmental impact and allows the
frames to be coated with a high performance metallic film, resulting in extreme surface hardness, high resistance
to corrosion, wear and tear, no UV degradation and protection from solvents and acids.

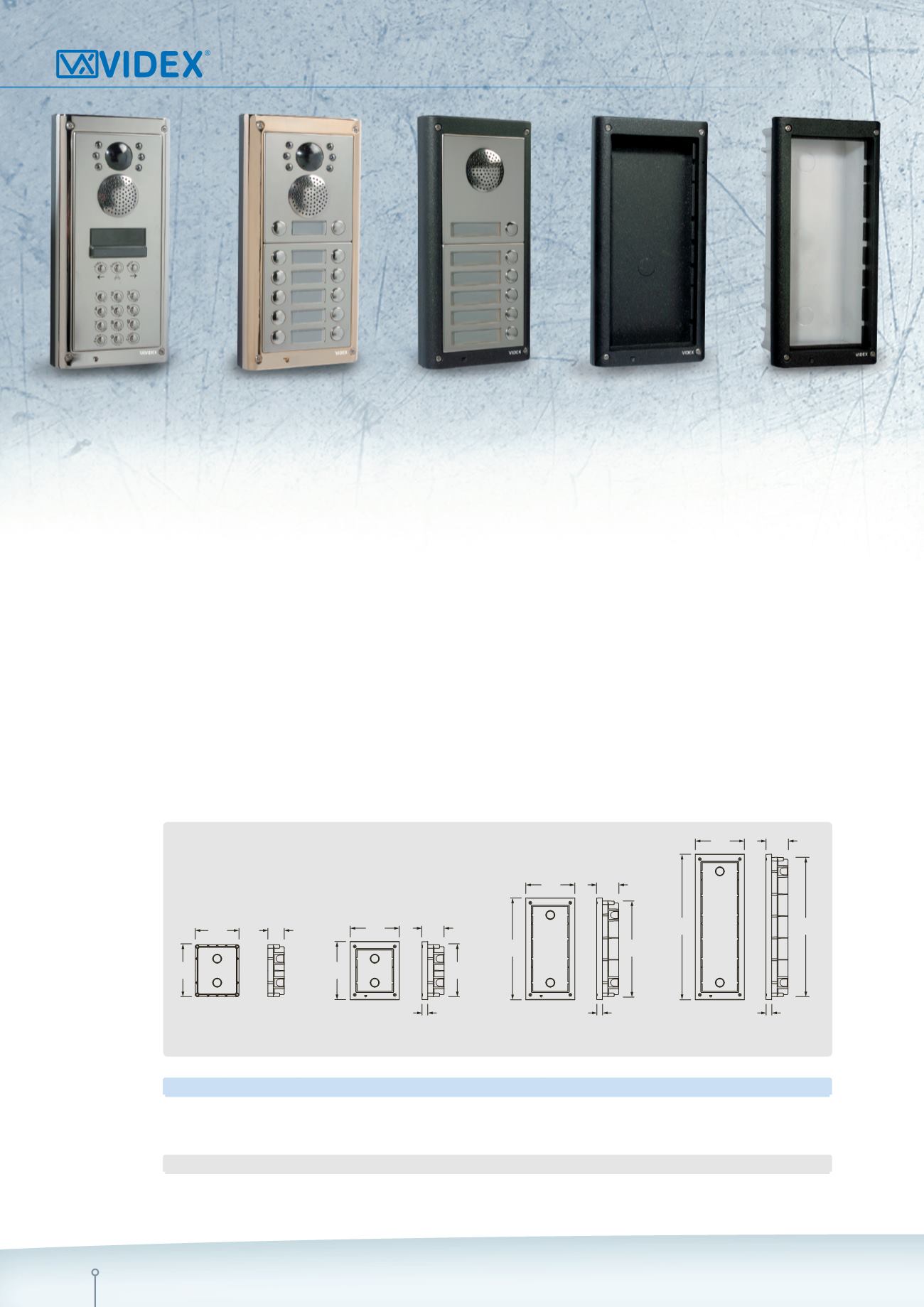

FRONT SUPPORT
The front support is available in 1, 2 and 3 module versions and includes:
-- The flush back box.
-- Themodule support frame is providedwith awaterproof gasket and security screws for fixing to the flushback box.
-- Spacers to connect the back boxes together when the outdoor station requires more than 3 modules.
Art.
MODULES FRONT SUPP.SIZE WxHxD (mm)
BACK BOX SIZE WxHxD (mm)
4851
1
135x160x61
120x143x44
4852
2
135x280,2x61
120x263,2x44
4853
3
135x400,4x61
120x383,4x44
