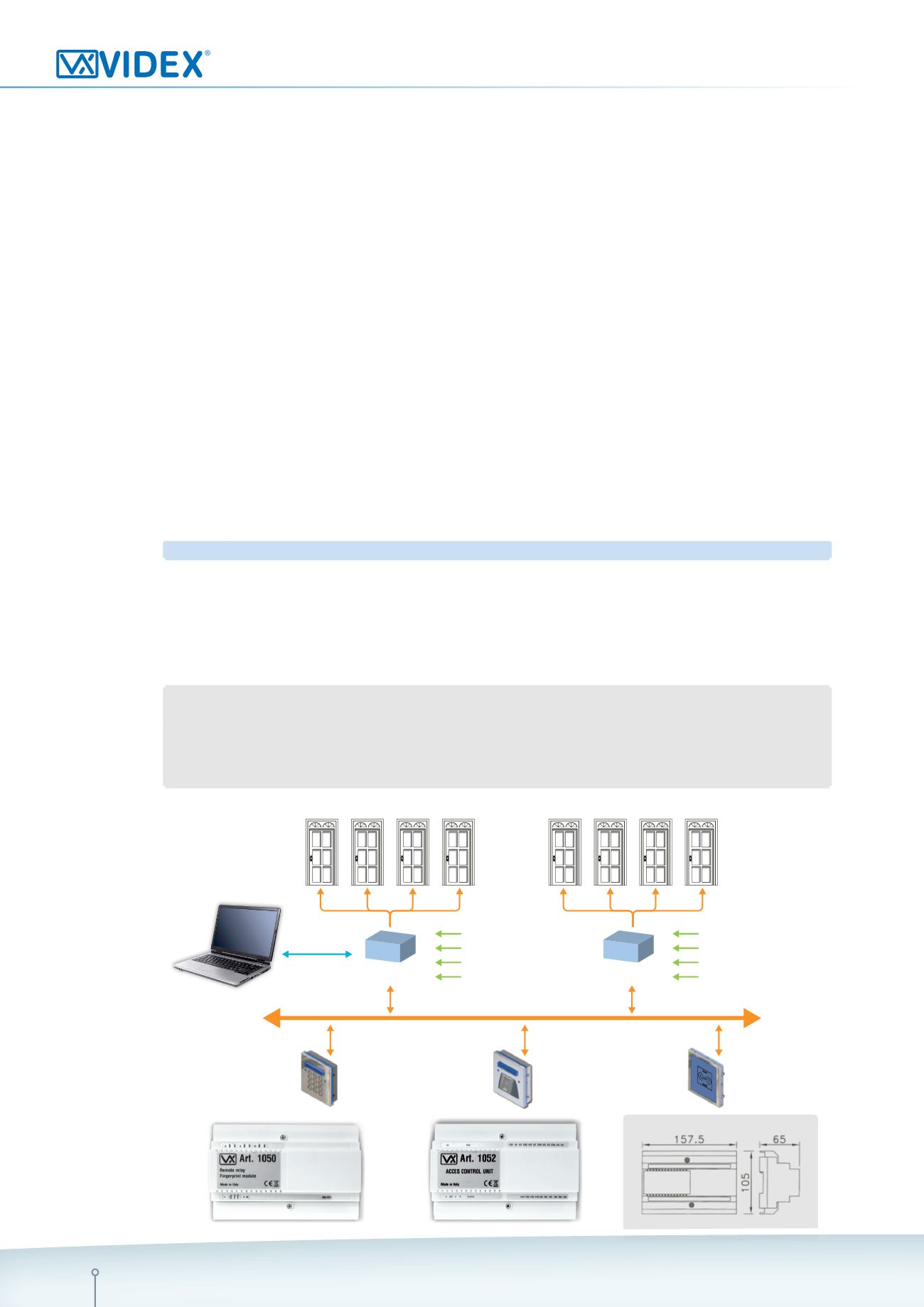

Art. 1050
Art. 1052
RS-485
VX1052 Control
board ID 1
USB
RS-232
VX1052 Control
board ID 2
DM 1
DM 2
DM 3
DM 4
DM 5
DM 6
DM 7
DM 8
Door 1 Door 2 Door 3 Door 4
Door 5 Door 6 Door 7 Door 8
120
GENERAL CATALOGUE
CONTROL UNITS FOR DEVICES ON RS-485 SERIAL BUS
All Videx access control modules with RS-485 serial connections (codelocks, proximity readers and finger print read-
ers) can be connected to a network control unit VX1052 or remote relay unit VX1050.
The VX1050 control unit has 3 changeover relays with dry contacts and is used to replace the operation of the relays
housed within the access control device. The user information is stored in the codelock, proximity reader or finger
print reader device which is connected to the BUS, the device processes the access information provided by the user
and if accepted transmits the information to the VX1050 control unit which enables the relevant relay. 32 devices
(4801, 4850/P, 4821, 4823C and 4821C) can be connected to the VX1050 BUS to activate the same three relays.
The VX1052 is a 4 door control unit. 16 VX1052 units can be connected to the same RS485 BUS allowing control of
64 doors (1 master VX1052 with the remaining units operating as slaves units). The unit includes door monitoring as
standard and will store up to 3000 users with access privileges (authorized doors, time bands, expiry date and credits)
and contact details (name, telephone No, e-mail etc.). The user information (except the contact information) is stored
in all the VX1052 control units, the codelock, proximity reader or finger print reader device which is linked to the
BUS through the VX1052, processes the access ID information provided by the user and transmits the information to
the VX1052 control unit where the user ID is stored, if accepted the relevant relay will be enabled. 64 devices (4801,
4850/P, 4823C and 4821C) can be connected to the VX1052 BUS. The 1052 also includes door monitoring and push
to exit button inputs for all doors.
A software kit Art. 1058 (software plus RS-232 cable) is available to program the VX1052 using a PC via RS-232 or USB
(cable not supplied) serial connection and allow real time access time monitoring.
Art.
DESCRIPTION
VX1050
Control unit for Art. 4801, 4850/P, 4823C and 4821C, complete with 3 (24V ac/dc 3A max) dry contact
changeover relays with 3 active low inputs for direct relay control, RS-232 and RS-485 serial interfaces.
Power Supply:
12/24V ac/dc
Power consumption:
100mA
Working temperature: -10 to + 50°C
VX1052
Control unit for Art. 4801, 4850/P, 4823C and 4821C, complete with 4 (24V ac/dc 3A max) dry contact
changeover relays with 4 active low inputs for direct relay control, 4 door monitoring inputs, 3000 user
memory, 7000 event log memory, RS-232, RS-485 and USB serial interfaces.
Power Supply:
12/24V ac/dc
Power consumption:
100mA
Working temperature:
-10 to + 50°C
Access Control
