Art. VX812
Art. VX813
Art. VX814/G
Art. VX815/G
108
GENERAL CATALOGUE

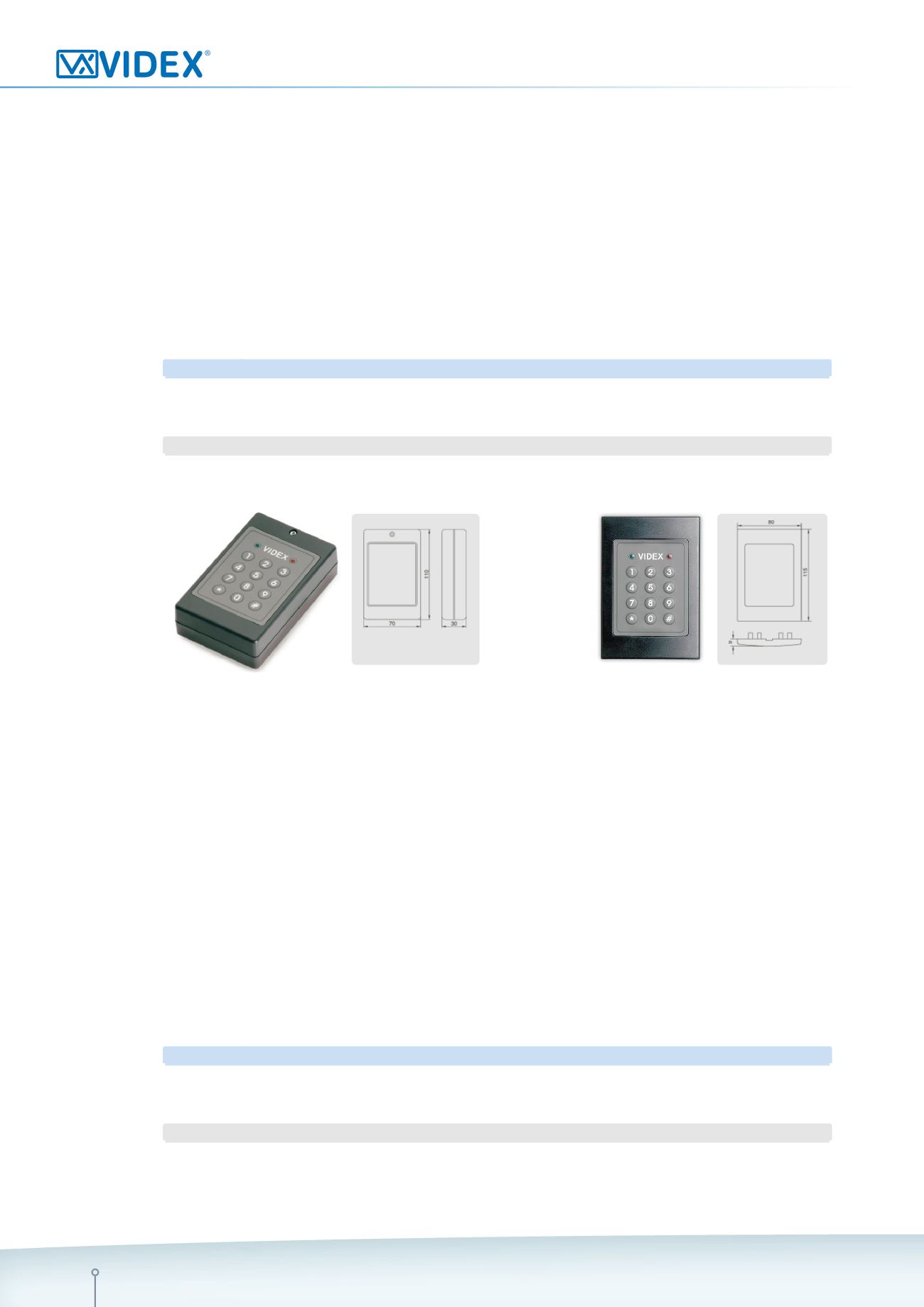

LOW COST CODELOCK UNITS FOR INTERNAL USE
This range of codelocks provide an ideal solution where Access Control systems are for internal use (offices, labo-
ratories etc.). The management circuitry is housed within the ABS codelock box and the keypad is of the tactile
membrane type. The units are available for flush (requires a standard 503 back box not provided) or surface mount-
ing. The colours available are dark grey for the surface version. With dark grey or white for the flush version. Flush
versions can be ordered un-assembled to be painted (by the customer).
All versions are equipped with a relay having C/NC/NO terminals and two relay command inputs. Both relay com-
mand inputs operate the same relay, the first activates the relay as programmed (latching or timed) while the
second alternates the relay state (latch).
Working Voltage:
12Vac/dc
Working Temperature:
-10 +50°C
Relay contacts:
24Vac/dc 3A
TWO ZONE LOW COST SELF CONTAINED ALARM SYSTEM
The two zone alarm is contained in the same size box as the low cost codelock units. With new firmware, the two
zone alarm provides a basic low cost alarm offering ease of installation. The units are available for flush (requires a
standard 503 back box not provided) or surface mounting.
Available colours are dark grey for surface versions and dark grey or white for flush versions. Flush version can be
ordered un-assembled to allow painting for colour co-ordination (by the customer). The unit contains 1 relay with
C/NC/NO contacts, 1 tamper switch and 1 “instant zone alarm input”, 1 “delayed zone alarm input” (Timed entry
and exit), 1 x 8 Ohms siren output. The unit employs a user friendly “Programming Menu” which allows the pro-
gramming of up to 30 user defined access codes, duration of siren and relay activation from 1 to 99 minutes and
timed exit/entry from 1 to 99 seconds. The alarm is ideal for use in stand alone applications ie, apartments, garages,
sheds, stock rooms or as a caravan alarm system etc.
Working Voltage:
12Vac/dc
Working Temperature:
-10 +50°C
Relay contacts:
24Vac/dc 3A
Art.
DESCRIPTION
VX812
Codelock unit, 9 codes, 1 relay, surface mounting colour dark gray.
VX814/W*
Codelock unit, 9 codes, 1 relay, flush mounting, colour white.
VX814/G*
Codelock unit, 9 codes, 1 relay, surface mounting, colour dark ray.
Art.
DESCRIPTION
VX813
Two zone alarm system, 30 codes,1 relay, surface mounting colour dark grey.
VX815/W*
Two zone alarm system, 30 codes,1 relay, flush mounting colour white.
VX815/G*
Two zone alarm system, 30 codes,1 relay, flush mounting colour dark grey.
*Painting of different colours shall be made by the customer: in this case order the unassembled version of the article. For the installation is required a standard 503 flush mounting
box (not provided).
Access Control
